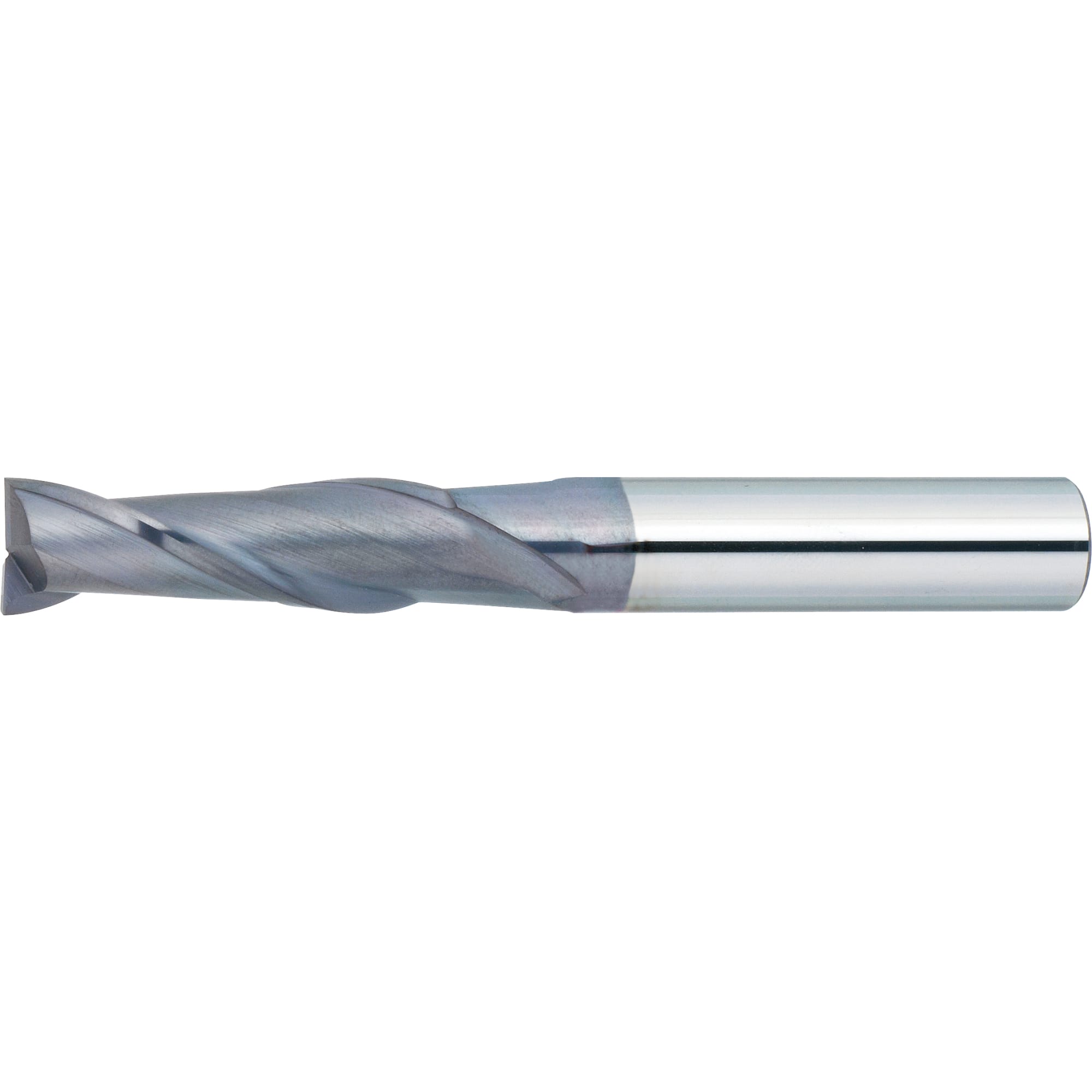

XAL series carbide square end mill, 2-flute / 3D Flute Length model
Per ingrandire l'immagine portare il mouse sull'immagine
Codice componente:
candidati non definiti.Disegno schematico
Elenco numeri di parte
Numero di articoli
| Codice componente |
|---|
Prezzo unitario (IVA esclusa)(Prezzo unitario IVA inclusa) | Giorni spedizione standard |
|---|
34.89 € ( 41.52 € ) | 5 giorni lavorativi |
23.05 € ( 27.43 € ) | 5 giorni lavorativi |
14.51 € ( 17.27 € ) | 5 giorni lavorativi |
21.90 € ( 26.06 € ) | 5 giorni lavorativi |
10.92 € ( 12.99 € ) | 5 giorni lavorativi |
15.63 € ( 18.60 € ) | 5 giorni lavorativi |
18.98 € ( 22.59 € ) | 5 giorni lavorativi |
10.41 € ( 12.39 € ) | 5 giorni lavorativi |
15.03 € ( 17.89 € ) | 5 giorni lavorativi |
9.61 € ( 11.44 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
9.89 € ( 11.77 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
9.61 € ( 11.44 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
9.63 € ( 11.46 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
9.61 € ( 11.44 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
19.82 € ( 23.59 € ) | 5 giorni lavorativi |
9.61 € ( 11.44 € ) | 5 giorni lavorativi |
26.47 € ( 31.50 € ) | 5 giorni lavorativi |
26.47 € ( 31.50 € ) | 5 giorni lavorativi |
26.47 € ( 31.50 € ) | 5 giorni lavorativi |
26.47 € ( 31.50 € ) | 5 giorni lavorativi |
10.93 € ( 13.01 € ) | 5 giorni lavorativi |
11.38 € ( 13.54 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
17.13 € ( 20.38 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
27.62 € ( 32.87 € ) | 5 giorni lavorativi |
11.04 € ( 13.14 € ) | 5 giorni lavorativi |
11.04 € ( 13.14 € ) | 5 giorni lavorativi |
27.64 € ( 32.89 € ) | 5 giorni lavorativi |
27.64 € ( 32.89 € ) | 5 giorni lavorativi |
27.64 € ( 32.89 € ) | 5 giorni lavorativi |
27.64 € ( 32.89 € ) | 5 giorni lavorativi |
19.54 € ( 23.25 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
11.76 € ( 13.99 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
31.78 € ( 37.82 € ) | 5 giorni lavorativi |
19.65 € ( 23.38 € ) | 5 giorni lavorativi |
32.86 € ( 39.10 € ) | 5 giorni lavorativi |
32.86 € ( 39.10 € ) | 5 giorni lavorativi |
32.86 € ( 39.10 € ) | 5 giorni lavorativi |
Ulteriori informazioni
Informazioni di base
The Misumi's unique lineup of fine flute length is available at attractive low prices
Specifiche e prezzo
Specifiche
| Model Number | Shank Diameter d |
Flute Length ℓ |
Overall Length L |
Figure | Standards Y/N | |||
| Outer Diameter D |
Shank Diameter d |
|||||||
| Standard | Sharp Edge | |||||||
| XAL-EM2R (Standard) XAL-PEM2R (Sharp Edge) |
0.1 | — | 3 | 0.3 | 40 | 1 | No Standards | ● |
| 0.2 | — | 3 | 0.6 | 40 | 1 | No Standards | ● | |
| 0.3 | — | 3 | 0.9 | 40 | 1 | ● | ● | |
| 0.4 | — | 3 | 1.2 | 40 | 1 | No Standards | ● | |
| 0.5 | — | 3 | 1.5 | 40 | 1 | ● | ● | |
| 0.6 | — | 3 | 1.8 | 40 | 1 | ● | ● | |
| 0.7 | — | 3 | 2.1 | 40 | 1 | No Standards | ● | |
| 0.8 | — | 3 | 2.4 | 40 | 1 | ● | ● | |
| 0.9 | — | 4 | 2.7 | 45 | 1 | No Standards | ● | |
| 1 | — | 4 | 3 | 45 | 1 | ● | ● | |
| 1.1 | — | 4 | 3.3 | 45 | 1 | No Standards | ● | |
| 1.2 | — | 4 | 3.6 | 45 | 1 | No Standards | ● | |
| 1.3 | — | 4 | 3.9 | 45 | 1 | No Standards | ● | |
| 1.4 | — | 4 | 4.2 | 45 | 1 | No Standards | ● | |
| 1.5 | — | 4 | 4.5 | 45 | 1 | ● | ● | |
| 1.6 | — | 4 | 4.8 | 45 | 1 | No Standards | ● | |
| 1.7 | — | 4 | 5.1 | 45 | 1 | No Standards | ● | |
| 1.8 | — | 4 | 5.4 | 45 | 1 | No Standards | ● | |
| 1.9 | — | 4 | 5.7 | 45 | 1 | No Standards | ● | |
| 2 | — | 4 | 6 | 45 | 1 | ● | ● | |
| 2.1 | — | 4 | 6.3 | 45 | 1 | No Standards | ● | |
| 2.2 | — | 4 | 6.6 | 45 | 1 | No Standards | ● | |
| 2.3 | — | 4 | 6.9 | 45 | 1 | No Standards | ● | |
| 2.4 | — | 4 | 7.2 | 45 | 1 | No Standards | ● | |
| 2.5 | — | 4 | 7.5 | 45 | 1 | No Standards | ● | |
| 2.6 | — | 4 | 7.8 | 45 | 1 | No Standards | ● | |
| 2.7 | — | 4 | 8.1 | 45 | 1 | No Standards | ● | |
| 2.8 | — | 4 | 8.4 | 45 | 1 | No Standards | ● | |
| 2.9 | — | 4 | 8.7 | 45 | 1 | No Standards | ● | |
| 3 | 4 | 4 | 9 | 45 | 1 | No Standards | ● | |
| 3 | — | 6 | 9 | 45 | 1 | ● | ● | |
| 3.1 | — | 6 | 9.3 | 45 | 1 | No Standards | ● | |
| 3.2 | — | 6 | 9.6 | 45 | 1 | No Standards | ● | |
| 3.3 | — | 6 | 9.9 | 45 | 1 | No Standards | ● | |
[ ! ]For shank diameter (d) specifications listed in blue, specify both a outer diameter (D) and shank diameter (d).
| Model Number | Shank Diameter d |
Flute Length ℓ |
Overall Length L |
Figure | Standards Y/N | |||
| Outer Diameter D |
Shank Diameter d |
|||||||
| Standard | Sharp Edge | |||||||
| XAL-EM2R (Standard) XAL-PEM2R (Sharp Edge) |
3.4 | — | 6 | 10.2 | 45 | 1 | No Standards | ● |
| 3.5 | — | 6 | 10.5 | 45 | 1 | ● | ● | |
| 3.6 | — | 6 | 10.8 | 45 | 1 | No Standards | ● | |
| 3.7 | — | 6 | 11.1 | 45 | 1 | No Standards | ● | |
| 3.8 | — | 6 | 11.4 | 45 | 1 | No Standards | ● | |
| 3.9 | — | 6 | 11.7 | 45 | 1 | No Standards | ● | |
| 4 | 4 | 4 | 12 | 50 | 2 | No Standards | ● | |
| 4 | — | 6 | 12 | 50 | 1 | ● | ● | |
| 4.1 | — | 6 | 12.3 | 50 | 1 | No Standards | ● | |
| 4.2 | — | 6 | 12.6 | 50 | 1 | No Standards | ● | |
| 4.3 | — | 6 | 12.9 | 50 | 1 | No Standards | ● | |
| 4.4 | — | 6 | 13.2 | 50 | 1 | No Standards | ● | |
| 4.5 | — | 6 | 13.5 | 50 | 1 | No Standards | ● | |
| 4.6 | — | 6 | 13.8 | 55 | 1 | No Standards | ● | |
| 4.7 | — | 6 | 14.1 | 55 | 1 | No Standards | ● | |
| 4.8 | — | 6 | 14.4 | 55 | 1 | No Standards | ● | |
| 4.9 | — | 6 | 14.7 | 55 | 1 | No Standards | ● | |
| 5 | — | 6 | 15 | 55 | 1 | ● | ● | |
| 5.1 | — | 6 | 15.3 | 55 | 1 | No Standards | ● | |
| 5.2 | — | 6 | 15.6 | 55 | 1 | No Standards | ● | |
| 5.3 | — | 6 | 15.9 | 55 | 1 | No Standards | ● | |
| 5.4 | — | 6 | 16.2 | 55 | 1 | No Standards | ● | |
| 5.5 | — | 6 | 16.5 | 55 | 1 | No Standards | ● | |
| 5.6 | — | 6 | 16.8 | 60 | 1 | No Standards | ● | |
| 5.7 | — | 6 | 17.1 | 60 | 1 | No Standards | ● | |
| 5.8 | — | 6 | 17.4 | 60 | 1 | No Standards | ● | |
| 5.9 | — | 6 | 17.7 | 60 | 1 | No Standards | ● | |
| 6 | — | 6 | 18 | 60 | 2 | ● | ● | |
| 6.5 | — | 8 | 19.5 | 60 | 1 | No Standards | ● | |
| 7 | — | 8 | 21 | 60 | 1 | ● | ● | |
| 7.5 | — | 8 | 22.5 | 70 | 1 | No Standards | ● | |
| 8 | — | 8 | 24 | 70 | 2 | ● | ● | |
| 8.5 | — | 10 | 25.5 | 70 | 1 | No Standards | ● | |
| 9 | — | 10 | 27 | 70 | 1 | No Standards | ● | |
| 9.5 | — | 10 | 28.5 | 75 | 1 | No Standards | ● | |
| 10 | — | 10 | 30 | 80 | 2 | ● | ● | |
| 11 | — | 12 | 33 | 85 | 1 | No Standards | ● | |
| 12 | — | 12 | 36 | 85 | 2 | ● | ● | |
| 14 | — | 12 | 42 | 80 | 3 | ● | No Standards | |
| 16 | — | 16 | 48 | 110 | 2 | ● | ● | |
| 18 | — | 16 | 54 | 110 | 3 | No Standards | ● | |
| 20 | — | 20 | 60 | 110 | 2 | ● | ● | |
[ ! ]For shank diameter (d) specifications listed in blue, specify both a outer diameter (D) and shank diameter (d).
Caratteristiche ed esempi di utilizzo
Più Informazioni
● An affordable set price that moves according to quantity from 3 pieces and up.
● The XAL coating with excellent lubricity delivers stable wear-resistant performance, especially when milling raw materials, giving improved shape accuracy to the machined objects.
● 2-flute end mill with a wide operating range. Use for a variety of applications.
[ ! ]The XAL coating does not have conductive properties. Cannot be used with conduction model tool setters.
