MISUMI

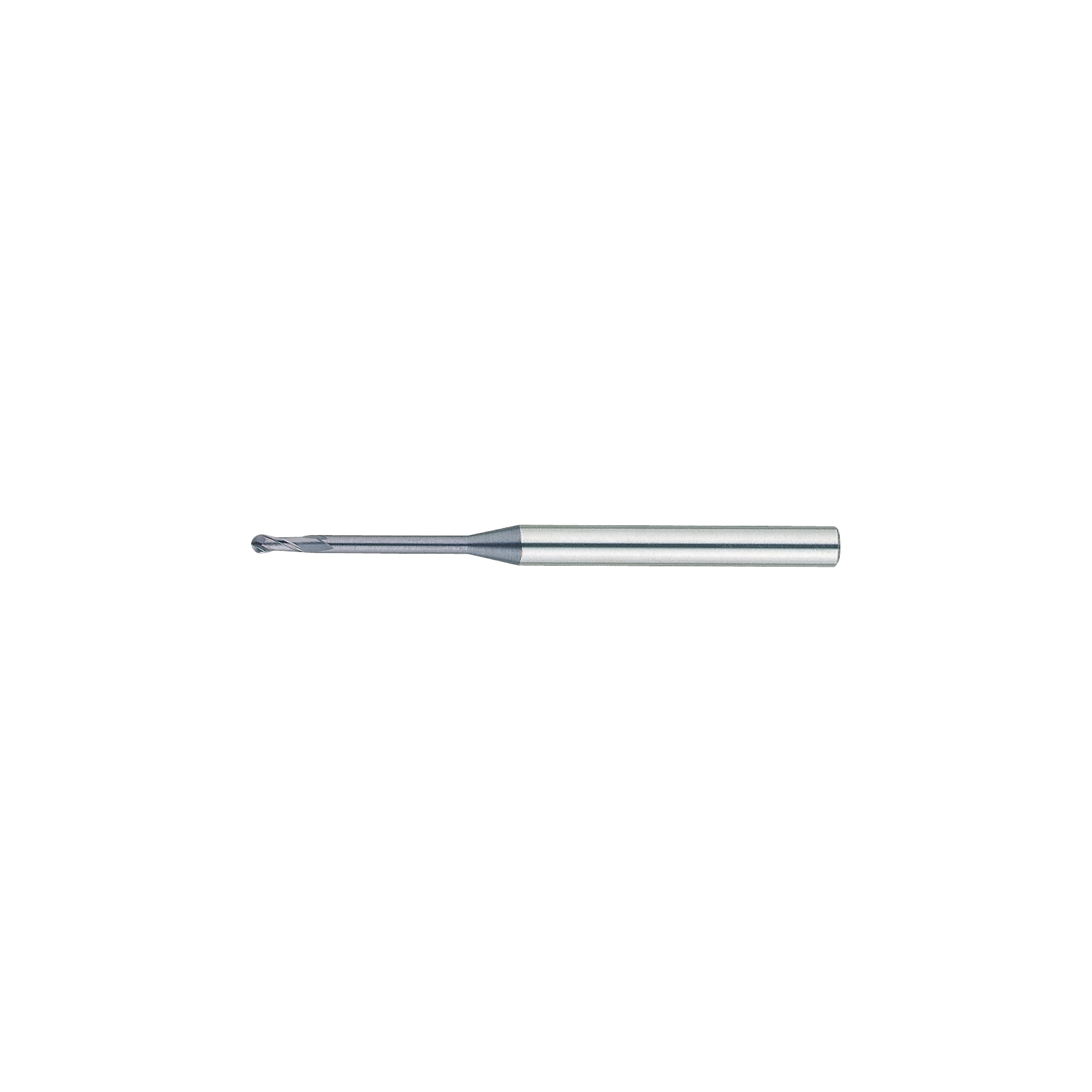

XAL Series Carbide Long Neck Ball End Mill, 2-Flute / Stub, Long Neck Model

XAL Series Carbide Long Neck Ball End Mill, 2-Flute / Stub, Long Neck Model

Per ingrandire l'immagine portare il mouse sull'immagine

Codice componente:

Sono stati trovati. 219 candidati non definiti.
Quantità:

Disegno schematico

XAL Series Carbide Long Neck Ball End Mill, 2-Flute / Stub, Long Neck Model:Related Image

Elenco numeri di parte

Numero di articoli
  • 1
  • 2
  • 3
  • 4
  • Successivo
    • Codice componente
    XAL-BEM2LB0.05-0.2
    XAL-BEM2LB0.05-0.3
    XAL-BEM2LB0.05-0.5
    XAL-BEM2LB0.1-0.3
    XAL-BEM2LB0.1-0.5
    XAL-BEM2LB0.1-0.75
    XAL-BEM2LB0.1-1
    XAL-BEM2LB0.1-1.5
    XAL-BEM2LB0.1-1.25
    XAL-BEM2LB0.1-2
    XAL-BEM2LB0.1-2.5
    XAL-BEM2LB0.1-3
    XAL-BEM2LB0.2-0.5
    XAL-BEM2LB0.2-0.75
    XAL-BEM2LB0.2-1
    XAL-BEM2LB0.2-1-6
    XAL-BEM2LB0.2-1.5
    XAL-BEM2LB0.2-2
    XAL-BEM2LB0.2-2-6
    XAL-BEM2LB0.2-2.5
    XAL-BEM2LB0.2-3
    XAL-BEM2LB0.2-3.5
    XAL-BEM2LB0.2-4
    XAL-BEM2LB0.2-4.5
    XAL-BEM2LB0.2-5
    XAL-BEM2LB0.2-6
    XAL-BEM2LB0.3-1
    XAL-BEM2LB0.3-1.5
    XAL-BEM2LB0.3-2
    XAL-BEM2LB0.3-2-6
    XAL-BEM2LB0.3-2.5
    XAL-BEM2LB0.3-3
    XAL-BEM2LB0.3-3-6
    XAL-BEM2LB0.3-3.5
    XAL-BEM2LB0.3-4
    XAL-BEM2LB0.3-4.5
    XAL-BEM2LB0.3-5
    XAL-BEM2LB0.3-6
    XAL-BEM2LB0.3-6-6
    XAL-BEM2LB0.3-6.5
    XAL-BEM2LB0.3-7
    XAL-BEM2LB0.3-8
    XAL-BEM2LB0.3-9
    XAL-BEM2LB0.3-10
    XAL-BEM2LB0.3-11
    XAL-BEM2LB0.3-12
    XAL-BEM2LB0.4-2
    XAL-BEM2LB0.4-3
    XAL-BEM2LB0.4-4
    XAL-BEM2LB0.4-5
    XAL-BEM2LB0.4-6
    XAL-BEM2LB0.4-7
    XAL-BEM2LB0.4-8
    XAL-BEM2LB0.4-9
    XAL-BEM2LB0.4-10
    XAL-BEM2LB0.4-12
    XAL-BEM2LB0.5-2.5
    XAL-BEM2LB0.5-3
    XAL-BEM2LB0.5-3-6
    XAL-BEM2LB0.5-4

    R Size

    (mm)

    Flute Length (ℓ)

    (mm)

    Overall Length (L)

    (mm)

    Length Under Neck (ℓ1)

    (mm)

    Shank Diameter (d)

    (mm)

    R Precision

    (μm)

    Outer Diameter D

    (mm)

    Figure

    Length Under Neck (θ)

    (Degree)

    Under Neck Diameter d1

    (mm)

    Actual Effective Length Depends on Work Inclination Angle 30'

    (mm)

    Actual Effective Length Depends on Work Inclination Angle 1°

    (mm)

    Actual Effective Length Depends on Work Inclination Angle 1° 30'

    (mm)

    Actual Effective Length Depends on Work Inclination Angle 2°

    (mm)

    Actual Effective Length Depends on Work Inclination Angle 3°

    (mm)

    		Quantità minima d'ordine
    0.05
    0.07
    50
    0.2
    4
    ±0.005
    0.1
    1
    10°
    0.085
    0.2
    0.21
    0.22
    0.23
    0.25
    1 pezzi
    0.05
    0.07
    50
    0.3
    4
    ±0.005
    0.1
    1
    10°
    0.085
    0.31
    0.32
    0.33
    0.35
    0.37
    1 pezzi
    0.05
    0.07
    50
    0.5
    4
    ±0.005
    0.1
    1
    10°
    0.085
    0.52
    0.54
    0.56
    0.58
    0.63
    1 pezzi
    0.1
    0.15
    50
    0.3
    4
    ±0.005
    0.2
    1
    10°
    0.18
    0.31
    0.32
    0.33
    0.35
    0.37
    1 pezzi
    0.1
    0.15
    50
    0.5
    4
    ±0.005
    0.2
    1
    10°
    0.18
    0.52
    0.54
    0.56
    0.58
    0.63
    1 pezzi
    0.1
    0.15
    50
    0.75
    4
    ±0.005
    0.2
    1
    10°
    0.18
    0.78
    0.81
    0.84
    0.88
    0.94
    1 pezzi
    0.1
    0.15
    50
    1
    4
    ±0.005
    0.2
    1
    10°
    0.18
    1.04
    1.08
    1.13
    1.17
    1.26
    1 pezzi
    0.1
    0.15
    50
    1.5
    4
    ±0.005
    0.2
    1
    10°
    0.18
    1.56
    1.63
    1.69
    1.76
    1.89
    1 pezzi
    0.1
    0.15
    50
    1.25
    4
    ±0.005
    0.2
    1
    10°
    0.18
    1.3
    1.36
    1.41
    1.47
    1.58
    1 pezzi
    0.1
    0.15
    50
    2
    4
    ±0.005
    0.2
    1
    10°
    0.18
    2.08
    2.17
    2.26
    2.35
    2.52
    1 pezzi
    0.1
    0.15
    50
    2.5
    4
    ±0.005
    0.2
    1
    10°
    0.18
    2.61
    2.72
    2.83
    2.94
    3.16
    1 pezzi
    0.1
    0.15
    50
    3
    4
    ±0.005
    0.2
    1
    10°
    0.18
    3.13
    3.26
    3.39
    3.52
    3.79
    1 pezzi
    0.2
    0.3
    50
    0.5
    4
    ±0.005
    0.4
    1
    10°
    0.37
    0.52
    0.54
    0.56
    0.58
    0.63
    1 pezzi
    0.2
    0.3
    50
    0.75
    4
    ±0.005
    0.4
    1
    10°
    0.37
    0.78
    0.81
    0.84
    0.88
    0.94
    1 pezzi
    0.2
    0.3
    50
    1
    4
    ±0.005
    0.4
    1
    10°
    0.37
    1.04
    1.08
    1.13
    1.17
    1.26
    1 pezzi
    0.2
    0.3
    50
    1
    6
    ±0.005
    0.4
    1
    15°
    0.37
    1.02
    1.05
    1.08
    1.11
    1.16
    1 pezzi
    0.2
    0.3
    50
    1.5
    4
    ±0.005
    0.4
    1
    10°
    0.37
    1.56
    1.63
    1.69
    1.76
    1.89
    1 pezzi
    0.2
    0.3
    50
    2
    4
    ±0.005
    0.4
    1
    10°
    0.37
    2.08
    2.17
    2.26
    2.35
    2.52
    1 pezzi
    0.2
    0.3
    50
    2
    6
    ±0.005
    0.4
    1
    15°
    0.37
    2.05
    2.11
    2.16
    2.22
    2.33
    1 pezzi
    0.2
    0.3
    50
    2.5
    4
    ±0.005
    0.4
    1
    10°
    0.37
    2.61
    2.72
    2.83
    2.94
    3.16
    1 pezzi
    0.2
    0.3
    50
    3
    4
    ±0.005
    0.4
    1
    10°
    0.37
    3.13
    3.26
    3.39
    3.52
    3.79
    1 pezzi
    0.2
    0.3
    50
    3.5
    4
    ±0.005
    0.4
    1
    10°
    0.37
    3.65
    3.8
    3.96
    4.11
    4.42
    1 pezzi
    0.2
    0.3
    50
    4
    4
    ±0.005
    0.4
    1
    10°
    0.37
    4.17
    4.35
    4.52
    4.7
    5.05
    1 pezzi
    0.2
    0.3
    50
    4.5
    4
    ±0.005
    0.4
    1
    10°
    0.37
    4.69
    4.89
    5.09
    5.29
    5.69
    1 pezzi
    0.2
    0.3
    50
    5
    4
    ±0.005
    0.4
    1
    10°
    0.37
    5.22
    5.44
    5.66
    5.88
    6.32
    1 pezzi
    0.2
    0.3
    50
    6
    4
    ±0.005
    0.4
    1
    10°
    0.37
    6.26
    6.52
    6.79
    7.05
    7.58
    1 pezzi
    0.3
    0.45
    50
    1
    4
    ±0.005
    0.6
    1
    10°
    0.56
    1.04
    1.08
    1.13
    1.17
    1.26
    1 pezzi
    0.3
    0.45
    50
    1.5
    4
    ±0.005
    0.6
    1
    10°
    0.56
    1.56
    1.63
    1.69
    1.76
    1.89
    1 pezzi
    0.3
    0.45
    50
    2
    4
    ±0.005
    0.6
    1
    10°
    0.56
    2.08
    2.17
    2.26
    2.35
    2.52
    1 pezzi
    0.3
    0.45
    50
    2
    6
    ±0.005
    0.6
    1
    15°
    0.56
    2.05
    2.11
    2.16
    2.22
    2.33
    1 pezzi
    0.3
    0.45
    50
    2.5
    4
    ±0.005
    0.6
    1
    10°
    0.56
    2.61
    2.72
    2.83
    2.94
    3.16
    1 pezzi
    0.3
    0.45
    50
    3
    4
    ±0.005
    0.6
    1
    10°
    0.56
    3.13
    3.26
    3.39
    3.52
    3.79
    1 pezzi
    0.3
    0.45
    50
    3
    6
    ±0.005
    0.6
    1
    15°
    0.56
    3.08
    3.16
    3.25
    3.33
    3.5
    1 pezzi
    0.3
    0.45
    50
    3.5
    4
    ±0.005
    0.6
    1
    10°
    0.56
    3.65
    3.8
    3.96
    4.11
    4.42
    1 pezzi
    0.3
    0.45
    50
    4
    4
    ±0.005
    0.6
    1
    10°
    0.56
    4.17
    4.35
    4.52
    4.7
    5.05
    1 pezzi
    0.3
    0.45
    50
    4.5
    4
    ±0.005
    0.6
    1
    10°
    0.56
    4.69
    4.89
    5.09
    5.29
    5.69
    1 pezzi
    0.3
    0.45
    50
    5
    4
    ±0.005
    0.6
    1
    10°
    0.56
    5.22
    5.44
    5.66
    5.88
    6.32
    1 pezzi
    0.3
    0.45
    50
    6
    4
    ±0.005
    0.6
    1
    10°
    0.56
    6.26
    6.52
    6.79
    7.05
    7.58
    1 pezzi
    0.3
    0.45
    50
    6
    6
    ±0.005
    0.6
    1
    15°
    0.56
    6.16
    6.33
    6.5
    6.67
    7
    1 pezzi
    0.3
    0.45
    50
    6.5
    4
    ±0.005
    0.6
    1
    10°
    0.56
    6.78
    7.07
    7.35
    7.64
    8.22
    1 pezzi
    0.3
    0.45
    50
    7
    4
    ±0.005
    0.6
    1
    10°
    0.56
    7.3
    7.61
    7.92
    8.23
    8.85
    1 pezzi
    0.3
    0.45
    50
    8
    4
    ±0.005
    0.6
    1
    10°
    0.56
    8.35
    8.7
    9.05
    9.41
    10.11
    1 pezzi
    0.3
    0.45
    50
    9
    4
    ±0.005
    0.6
    1
    10°
    0.56
    9.39
    9.79
    10.19
    10.58
    11.38
    1 pezzi
    0.3
    0.45
    50
    10
    4
    ±0.005
    0.6
    1
    10°
    0.56
    10.44
    10.88
    11.32
    11.76
    12.64
    1 pezzi
    0.3
    0.45
    50
    11
    4
    ±0.005
    0.6
    1
    10°
    0.56
    11.48
    11.96
    12.45
    12.93
    13.91
    1 pezzi
    0.3
    0.45
    50
    12
    4
    ±0.005
    0.6
    1
    10°
    0.56
    12.52
    13.05
    13.58
    14.11
    15.17
    1 pezzi
    0.4
    0.6
    50
    2
    4
    ±0.005
    0.8
    1
    10°
    0.76
    2.08
    2.17
    2.26
    2.35
    2.52
    1 pezzi
    0.4
    0.6
    50
    3
    4
    ±0.005
    0.8
    1
    10°
    0.76
    3.13
    3.26
    3.39
    3.52
    3.79
    1 pezzi
    0.4
    0.6
    50
    4
    4
    ±0.005
    0.8
    1
    10°
    0.76
    4.17
    4.35
    4.52
    4.7
    5.05
    1 pezzi
    0.4
    0.6
    50
    5
    4
    ±0.005
    0.8
    1
    10°
    0.76
    5.22
    5.44
    5.66
    5.88
    6.32
    1 pezzi
    0.4
    0.6
    50
    6
    4
    ±0.005
    0.8
    1
    10°
    0.76
    6.26
    6.52
    6.79
    7.05
    7.58
    1 pezzi
    0.4
    0.6
    50
    7
    4
    ±0.005
    0.8
    1
    10°
    0.76
    7.3
    7.61
    7.92
    8.23
    8.85
    1 pezzi
    0.4
    0.6
    50
    8
    4
    ±0.005
    0.8
    1
    10°
    0.76
    8.35
    8.7
    9.05
    9.41
    10.11
    1 pezzi
    0.4
    0.6
    50
    9
    4
    ±0.005
    0.8
    1
    10°
    0.76
    9.39
    9.79
    10.19
    10.58
    11.38
    1 pezzi
    0.4
    0.6
    50
    10
    4
    ±0.005
    0.8
    1
    10°
    0.76
    10.44
    10.88
    11.32
    11.76
    12.64
    1 pezzi
    0.4
    0.6
    50
    12
    4
    ±0.005
    0.8
    1
    10°
    0.76
    12.52
    13.05
    13.58
    14.11
    15.17
    1 pezzi
    0.5
    0.75
    50
    2.5
    4
    ±0.005
    1
    1
    10°
    0.95
    2.61
    2.72
    2.83
    2.94
    3.16
    1 pezzi
    0.5
    0.75
    50
    3
    4
    ±0.005
    1
    1
    10°
    0.95
    3.13
    3.26
    3.39
    3.52
    3.79
    1 pezzi
    0.5
    0.75
    50
    3
    6
    ±0.005
    1
    1
    15°
    0.95
    3.08
    3.16
    3.25
    3.33
    3.5
    1 pezzi
    0.5
    0.75
    50
    4
    4
    ±0.005
    1
    1
    10°
    0.95
    4.17
    4.35
    4.52
    4.7
    5.05
    1 pezzi
    Prezzo unitario (IVA esclusa)(Prezzo unitario IVA inclusa)
    Giorni spedizione standard
    57.46 €
    (
    68.38 €
     )
    5 giorni lavorativi
    55.82 €
    (
    66.43 €
     )
    5 giorni lavorativi
    66.44 €
    (
    79.06 €
     )
    5 giorni lavorativi
    45.77 €
    (
    54.47 €
     )
    5 giorni lavorativi
    27.88 €
    (
    33.18 €
     )
    5 giorni lavorativi
    37.60 €
    (
    44.74 €
     )
    5 giorni lavorativi
    35.43 €
    (
    42.16 €
     )
    5 giorni lavorativi
    42.95 €
    (
    51.11 €
     )
    5 giorni lavorativi
    43.86 €
    (
    52.19 €
     )
    5 giorni lavorativi
    49.03 €
    (
    58.35 €
     )
    5 giorni lavorativi
    52.29 €
    (
    62.23 €
     )
    5 giorni lavorativi
    56.35 €
    (
    67.06 €
     )
    5 giorni lavorativi
    26.98 €
    (
    32.11 €
     )
    5 giorni lavorativi
    26.98 €
    (
    32.11 €
     )
    5 giorni lavorativi
    20.81 €
    (
    24.76 €
     )
    5 giorni lavorativi
    43.70 €
    (
    52.00 €
     )
    5 giorni lavorativi
    26.74 €
    (
    31.82 €
     )
    5 giorni lavorativi
    19.70 €
    (
    23.44 €
     )
    5 giorni lavorativi
    43.70 €
    (
    52.00 €
     )
    5 giorni lavorativi
    24.00 €
    (
    28.56 €
     )
    5 giorni lavorativi
    20.81 €
    (
    24.76 €
     )
    5 giorni lavorativi
    33.79 €
    (
    40.21 €
     )
    5 giorni lavorativi
    21.32 €
    (
    25.37 €
     )
    5 giorni lavorativi
    35.43 €
    (
    42.16 €
     )
    5 giorni lavorativi
    31.90 €
    (
    37.96 €
     )
    5 giorni lavorativi
    37.05 €
    (
    44.09 €
     )
    5 giorni lavorativi
    18.62 €
    (
    22.16 €
     )
    5 giorni lavorativi
    21.64 €
    (
    25.75 €
     )
    5 giorni lavorativi
    19.14 €
    (
    22.78 €
     )
    5 giorni lavorativi
    32.68 €
    (
    38.89 €
     )
    5 giorni lavorativi
    19.14 €
    (
    22.78 €
     )
    5 giorni lavorativi
    19.77 €
    (
    23.53 €
     )
    5 giorni lavorativi
    26.56 €
    (
    31.61 €
     )
    5 giorni lavorativi
    20.76 €
    (
    24.70 €
     )
    5 giorni lavorativi
    18.55 €
    (
    22.07 €
     )
    5 giorni lavorativi
    20.76 €
    (
    24.70 €
     )
    5 giorni lavorativi
    20.04 €
    (
    23.85 €
     )
    5 giorni lavorativi
    18.55 €
    (
    22.07 €
     )
    5 giorni lavorativi
    33.37 €
    (
    39.71 €
     )
    5 giorni lavorativi
    24.81 €
    (
    29.52 €
     )
    5 giorni lavorativi
    25.86 €
    (
    30.77 €
     )
    5 giorni lavorativi
    19.14 €
    (
    22.78 €
     )
    5 giorni lavorativi
    31.08 €
    (
    36.99 €
     )
    5 giorni lavorativi
    20.65 €
    (
    24.57 €
     )
    5 giorni lavorativi
    34.06 €
    (
    40.53 €
     )
    5 giorni lavorativi
    20.95 €
    (
    24.93 €
     )
    5 giorni lavorativi
    20.46 €
    (
    24.35 €
     )
    5 giorni lavorativi
    19.77 €
    (
    23.53 €
     )
    5 giorni lavorativi
    19.47 €
    (
    23.17 €
     )
    5 giorni lavorativi
    20.35 €
    (
    24.22 €
     )
    5 giorni lavorativi
    20.65 €
    (
    24.57 €
     )
    5 giorni lavorativi
    21.36 €
    (
    25.42 €
     )
    5 giorni lavorativi
    21.23 €
    (
    25.26 €
     )
    5 giorni lavorativi
    29.45 €
    (
    35.05 €
     )
    5 giorni lavorativi
    25.70 €
    (
    30.58 €
     )
    5 giorni lavorativi
    31.08 €
    (
    36.99 €
     )
    5 giorni lavorativi
    18.55 €
    (
    22.07 €
     )
    5 giorni lavorativi
    17.37 €
    (
    20.67 €
     )
    5 giorni lavorativi
    27.74 €
    (
    33.01 €
     )
    5 giorni lavorativi
    17.65 €
    (
    21.00 €
     )
    5 giorni lavorativi
  • 1
  • 2
  • 3
  • 4
  • Successivo

    • Ulteriori informazioni

    Informazioni di base

    A significant number of specifications has been added to the XAL series that can be widely used for everything from general steel to copper

    Specifiche e prezzo

    Specifiche

    XAL Series Carbide Long Neck Ball End Mill, 2-Flute / Stub, Long Neck Model:Related Image

    Model Number
    XAL-BEM2LB

    Tip
    R    		 Length Under Neck
    ℓ1    		 Shank Diameter
    d    		 Shank Diameter
    d    		 Flute Length
    ℓ    		 Under Neck Diameter
    d1    		 Overall Length
    L    		 Under Neck Angle
    θ    		 Actual Effective Length Depends on Work Inclination Angle Figure
    30' 1° 1° 30' 2° 3°
    0.05 0.2 - 4 0.07 0.085 50 10° 0.20 0.21 0.22 0.23 0.25 1
    0.3 0.31 0.32 0.33 0.35 0.37 1
    0.5 0.52 0.54 0.56 0.58 0.63 1
    0.1 0.3 - 4 0.15 0.18 50 10° 0.31 0.32 0.33 0.35 0.37 1
    0.5 0.52 0.54 0.56 0.58 0.63 1
    0.75 0.78 0.81 0.84 0.88 0.94 1
    1 1.04 1.08 1.13 1.17 1.26 1
    1.25 1.30 1.36 1.41 1.47 1.58 1
    1.5 1.56 1.63 1.69 1.76 1.89 1
    2 2.08 2.17 2.26 2.35 2.52 1
    2.5 2.61 2.72 2.83 2.94 3.16 1
    3 3.13 3.26 3.39 3.52 3.79 1
    0.15 0.5 - 4 0.2 0.28 50 10° 0.52 0.54 0.56 0.58 0.63 1
    0.6 0.62 0.65 0.67 0.70 0.75 1
    1 1.04 1.08 1.13 1.17 1.26 1
    1 6 6 15° 1.02 1.05 1.08 1.11 1.16 1
    1.5 - 4 10° 1.56 1.63 1.69 1.76 1.89 1
    2 2.08 2.17 2.26 2.35 2.52 1
    2.5 2.61 2.72 2.83 2.94 3.16 1
    3 3.13 3.26 3.39 3.52 3.79 1
    4 4.17 4.35 4.52 4.70 5.05 1
    5 5.22 5.44 5.66 5.88 6.32 1
    0.2 0.5 - 4 0.3 0.37 50 10° 0.52 0.54 0.56 0.58 0.63 1
    0.75 0.78 0.81 0.84 0.88 0.94 1
    1 1.04 1.08 1.13 1.17 1.26 1
    1 6 6 15° 1.02 1.05 1.08 1.11 1.16 1
    1.5 - 4 10° 1.56 1.63 1.69 1.76 1.89 1
    2 2.08 2.17 2.26 2.35 2.52 1
    2.5 2.61 2.72 2.83 2.94 3.16 1
    2 6 6 15° 2.05 2.11 2.16 2.22 2.33 1
    3 - 4 10° 3.13 3.26 3.39 3.52 3.79 1
    3.5 3.65 3.80 3.96 4.11 4.42 1
    4 4.17 4.35 4.52 4.70 5.05 1
    4.5 4.69 4.89 5.09 5.29 5.69 1
    5 5.22 5.44 5.66 5.88 6.32 1
    6 6.26 6.52 6.79 7.05 7.58 1
    0.25 1 - 4 0.35 0.46 50 10° 1.04 1.08 1.13 1.17 1.26 1
    1.5 1.56 1.63 1.69 1.76 1.89 1
    1.5 6 6 15° 1.54 1.58 1.62 1.66 1.75 1
    2 - 4 10° 2.08 2.17 2.26 2.35 2.52 1
    2.5 2.61 2.72 2.83 2.94 3.16 1
    3 3.13 3.26 3.39 3.52 3.79 1
    4 4.17 4.35 4.52 4.70 5.05 1
    5 5.22 5.44 5.66 5.88 6.32 1
    6 6.26 6.52 6.79 7.05 7.58 1
    7 7.30 7.61 7.92 8.23 8.85 1
    8 8.35 8.70 9.05 9.41 10.11 1
    10 10.44 10.88 11.32 11.76 12.64 1
    0.3 1 - 4 0.45 0.56 50 10° 1.04 1.08 1.13 1.17 1.26 1
    1.5 1.56 1.63 1.69 1.76 1.89 1
    2 2.08 2.17 2.26 2.35 2.52 1
    2 6 6 15° 2.05 2.11 2.16 2.22 2.33 1
    2.5 - 4 10° 2.61 2.72 2.83 2.94 3.16 1
    3 3.13 3.26 3.39 3.52 3.79 1
    3 6 6 15° 3.08 3.16 3.25 3.33 3.50 1
    3.5 - 4 10° 3.65 3.80 3.96 4.11 4.42 1
    4 4.17 4.35 4.52 4.70 5.05 1
    4.5 4.69 4.89 5.09 5.29 5.69 1
    5 5.22 5.44 5.66 5.88 6.32 1
    6 6.26 6.52 6.79 7.05 7.58 1
    6 6 6 15° 6.16 6.33 6.50 6.67 7.00 1
    6.5 - 4 10° 6.78 7.07 7.35 7.64 8.22 1
    7 7.30 7.61 7.92 8.23 8.85 1
    8 8.35 8.70 9.05 9.41 10.11 1
    9 9.39 9.79 10.19 10.58 11.38 1
    10 10.44 10.88 11.32 11.76 12.64 1
    11 11.48 11.96 12.45 12.93 13.91 1
    12 12.52 13.05 13.58 14.11 15.17 1
    0.4 2 - 4 0.6 0.76 50 10° 2.08 2.17 2.26 2.35 2.52 1
    3 3.13 3.26 3.39 3.52 3.79 1
    4 4.17 4.35 4.52 4.70 5.05 1
    5 5.22 5.44 5.66 5.88 6.32 1
    6 6.26 6.52 6.79 7.05 7.58 1
    7 7.30 7.61 7.92 8.23 8.85 1
    8 8.35 8.70 9.05 9.41 10.11 1
    9 9.39 9.79 10.19 10.58 11.38 1
    10 10.44 10.88 11.32 11.76 12.64 1
    12 12.52 13.05 13.58 14.11 15.17 1
    0.5 2.5 - 4 0.75 0.95 50 10° 2.61 2.72 2.83 2.94 3.16 1
    3 3.13 3.26 3.39 3.52 3.79 1
    3 6 6 15° 3.08 3.16 3.25 3.33 3.50 1
    4 - 4 10° 4.17 4.35 4.52 4.70 5.05 1
    4 6 6 15° 4.11 4.22 4.33 4.44 4.67 1
    5 - 4 10° 5.22 5.44 5.66 5.88 6.32 1
    5 6 6 15° 5.14 5.28 5.42 5.56 5.84 1
    6 - 4 10° 6.26 6.52 6.79 7.05 7.58 1
    6 6 6 15° 6.16 6.33 6.50 6.67 7.00 1
    7 - 4 10° 7.30 7.61 7.92 8.23 8.85 1
    8 8.35 8.70 9.05 9.41 10.11 1
    8 6 6 15° 8.22 8.44 8.67 8.89 9.34 1
    9 - 4 10° 9.39 9.79 10.19 10.58 11.38 1
    10 10.44 10.88 11.32 11.76 12.64 1
    10 6 6 15° 10.28 10.56 10.84 11.12 11.68 1
    12 - 4 10° 12.52 13.05 13.58 14.11 15.17 1
    12 6 6 15° 12.33 12.67 13.00 13.34 14.01 1
    14 - 4 10° 14.61 15.23 15.85 16.46 17.70 1
    16 16.70 17.41 18.11 18.82 20.23 1
    16 6 6 70 15° 16.44 16.89 17.34 17.79 18.68 1
    18 - 4 70 10° 18.79 19.58 20.38 21.17 22.76 1
    20 70 20.88 21.76 22.64 23.52 25.29 1
    20 6 6 15° 20.56 21.12 21.68 22.24 23.36 1
    22 - 4 10° 22.96 23.93 24.90 25.87 27.82 1
    0.6 4 - 4 0.9 1.15 50 10° 4.17 4.35 4.52 4.70 5.05 1
    6 6.26 6.52 6.79 7.05 7.58 1
    6 6 6 15° 6.16 6.33 6.50 6.67 7.00 1
    8 - 4 10° 8.35 8.70 9.05 9.41 10.11 1
    10 - 4 10° 10.44 10.88 11.32 11.76 12.64 1
    10 6 6 15° 10.28 10.56 10.84 11.12 11.68 1
    12 - 4 10° 12.52 13.05 13.58 14.11 15.17 1
    16 16.70 17.41 18.11 18.82 20.23 1
    20 70 20.88 21.76 22.64 23.52 25.29 1
    24 25.05 26.11 27.17 28.23 30.35 1
    0.7 8 - 4 1 1.35 50 10° 8.35 8.70 9.05 9.41 10.11 1
    12 12.52 13.05 13.58 14.11 15.17 1
    16 16.70 17.41 18.11 18.82 20.23 1
    0.75 3 - 4 1.1 1.45 50 10° 3.13 3.26 3.39 3.52 3.79 1
    4 4.17 4.35 4.52 4.70 5.05 1
    6 6.26 6.52 6.79 7.05 7.58 1
    6 6 6 15° 6.16 6.33 6.50 6.67 7.00 1
    8 - 4 10° 8.35 8.70 9.05 9.41 10.11 1
    10 10.44 10.88 11.32 11.76 12.64 1
    10 6 6 15° 10.28 10.56 10.84 11.12 11.68 1
    12 - 4 10° 12.52 13.05 13.58 14.11 15.17 1
    14 14.61 15.23 15.85 16.46 17.70 1
    16 16.70 17.41 18.11 18.82 20.23 1
    16 6 6 70 15° 16.44 16.89 17.34 17.79 18.68 1
    18 - 4 10° 18.79 19.58 20.38 21.17 22.76 1
    20 20.88 21.76 22.64 23.52 25.29 1
    22 22.96 23.93 24.90 25.87 27.82 1
    30 31.32 32.64 33.96 35.29 Without Interference 1
    0.8 8 - 4 1.2 1.55 50 10° 8.35 8.70 9.05 9.41 10.11 1
    12 12.52 13.05 13.58 14.11 15.17 1
    16 16.70 17.41 18.11 18.82 20.23 1
    20 20.88 21.76 22.64 23.52 25.29 1
    0.9 8 - 4 1.3 1.75 50 10° 8.35 8.70 9.05 9.41 10.11 1
    12 12.52 13.05 13.58 14.11 15.17 1
    16 16.70 17.41 18.11 18.82 20.23 1
    20 20.88 21.76 22.64 23.52 25.29 1
    1 3 - 4 1.5 1.95 50 10° 3.13 3.26 3.39 3.52 3.79 1
    4 4.17 4.35 4.52 4.70 5.05 1
    4 6 6 15° 4.11 4.22 4.33 4.44 4.67 1
    6 - 4 10° 6.26 6.52 6.79 7.05 7.58 1
    6 6 6 15° 6.16 6.33 6.50 6.67 7.00 1
    8 - 4 10° 8.35 8.70 9.05 9.41 10.11 1
    8 6 6 15° 8.22 8.44 8.67 8.89 9.34 1
    10 - 4 10° 10.44 10.88 11.32 11.76 12.64 1
    10 6 6 15° 10.28 10.56 10.84 11.12 11.68 1
    12 - 4 10° 12.52 13.05 13.58 14.11 15.17 1
    12 - 6 15° 12.33 12.67 13.00 13.34 14.01 1
    14 - 4 10° 14.61 15.23 15.85 16.46 17.70 1
    16 16.70 17.41 18.11 18.82 20.23 1
    16 - 6 70 15° 16.44 16.89 17.34 17.79 18.68 1
    18 - 4 10° 18.79 19.58 20.38 21.17 22.76 1
    20 20.88 21.76 22.64 23.52 25.29 1
    20 6 6 15° 20.56 21.12 21.68 22.24 23.36 1
    22 - 4 10° 22.96 23.93 24.90 25.87 Without Interference 1
    25 26.10 27.20 28.30 29.40 Without Interference 1
    25 6 6 110 15° 25.70 26.40 27.10 27.80 29.20 1
    30 - 4 70 10° 31.32 32.64 33.96 35.29 Without Interference 1
    30 6 6 110 15° 30.84 31.68 32.52 33.36 35.04 1
    35 - 4 10° 36.54 38.08 39.62 Without Interference Without Interference 1
    35 6 6 15° 35.98 36.96 37.94 38.92 40.88 1
    40 - 4 10° 41.76 43.52 45.29 Without Interference Without Interference 1
    40 6 6 15° 41.12 42.24 43.36 44.48 46.72 1
    50 - 4 10° 52.20 54.40 Without Interference Without Interference Without Interference 1
    1.25 8 - 4 2.3 2.4 50 10° 8.35 8.70 9.05 9.41 10.11 1
    10 10.44 10.88 11.32 11.76 12.64 1
    15 15.66 16.32 16.98 17.64 18.96 1
    20 70 20.88 21.76 22.64 23.52 Without Interference 1
    25 26.10 27.20 28.30 Without Interference Without Interference 1
    30 31.32 32.64 33.96 Without Interference Without Interference 1
    35 36.54 38.08 Without Interference Without Interference Without Interference 1
    1.5 6 - 6 2.4 2.9 50 10° 6.26 6.52 6.79 7.05 7.58 1
    6 3 3 - Without Interference Without Interference Without Interference Without Interference Without Interference 2
    6 4 4 10° 6.26 6.52 6.79 7.05 7.58 1
    8 - 6 8.35 8.70 9.05 9.41 10.11 1
    10 10.44 10.88 11.32 11.76 12.64 1
    12 12.52 13.05 13.58 14.11 15.17 1
    14 14.61 15.23 15.85 16.46 17.70 1
    15 15.66 16.32 16.98 17.64 18.96 1
    16 70 16.70 17.41 18.11 18.82 20.23 1
    20 20.88 21.76 22.64 23.52 25.29 1
    25 26.10 27.20 28.30 29.40 31.61 1
    30 31.32 32.64 33.96 35.29 37.93 1
    35 36.54 38.08 39.62 41.17 Without Interference 1
    40 110 41.76 43.52 45.29 47.05 Without Interference 1
    50 52.20 54.40 56.61 Without Interference Without Interference 1
    1.75 10 - 6 2.8 3.35 50 10° 10.44 10.88 11.32 11.76 12.64 1
    25 70 26.10 27.20 28.30 29.40 31.61 1
    2 8 - 6 3 3.85 50 10° 8.35 8.70 9.05 9.41 10.11 1
    8 4 4 - Without Interference Without Interference Without Interference Without Interference Without Interference 2
    10 - 6 10° 10.44 10.88 11.32 11.76 12.64 1
    12 12.52 13.05 13.58 14.11 15.17 1
    14 14.61 15.23 15.85 16.46 17.70 1
    15 15.66 16.32 16.98 17.64 18.96 1
    16 16.70 17.41 18.11 18.82 20.23 1
    20 70 20.88 21.76 22.64 23.52 25.29 1
    25 26.10 27.20 28.30 29.40 Without Interference 1
    30 31.32 32.64 33.96 35.29 Without Interference 1
    35 110 36.54 38.08 39.62 Without Interference Without Interference 1
    40 41.76 43.52 45.29 Without Interference Without Interference 1
    45 46.98 48.96 Without Interference Without Interference Without Interference 1
    50 52.20 54.40 Without Interference Without Interference Without Interference 1
    60 62.64 65.28 Without Interference Without Interference Without Interference 1
    2.5 10 - 6 5 4.85 70 10° 10.44 10.88 11.32 11.76 12.64 1
    15 15.66 16.32 16.98 17.64 Without Interference 1
    20 20.88 21.76 22.64 Without Interference Without Interference 1
    25 26.10 27.20 Without Interference Without Interference Without Interference 1
    30 31.32 32.64 Without Interference Without Interference Without Interference 1
    35 110 36.54 Without Interference Without Interference Without Interference Without Interference 1
    40 41.76 Without Interference Without Interference Without Interference Without Interference 1
    45 46.98 Without Interference Without Interference Without Interference Without Interference 1
    50 52.20 Without Interference Without Interference Without Interference Without Interference 1
    3 20 - 6 6 5.85 70 - Without Interference Without Interference Without Interference Without Interference Without Interference 2
    25 - Without Interference Without Interference Without Interference Without Interference Without Interference 2
    30 - Without Interference Without Interference Without Interference Without Interference Without Interference 2
    40 110 - Without Interference Without Interference Without Interference Without Interference Without Interference 2
    50 - Without Interference Without Interference Without Interference Without Interference Without Interference 2
    60 - Without Interference Without Interference Without Interference Without Interference Without Interference 2

    [ ! ]For shank diameter (d) specifications listed in orange, specify a tip (R), under neck length (ℓ1) and shank diameter (d).

    Caratteristiche ed esempi di utilizzo

    Più Informazioni


    ● The XAL coating with excellent lubricity is ideal for general steel, copper and aluminum machining.
    ● The long neck helps to avoid tool interference when machining in deep areas.
    ● Delivers a finish with very good surface roughness after machining.
    [ ! ]The XAL coating does not have conductive properties. Cannot be used with conduction type tool setters.

    XAL Series Carbide Long Neck Ball End Mill, 2-Flute / Stub, Long Neck Model:Related Image
