Perni di espulsione / testa appiattita su un lato / EN 1.3343 Equiv. / superficie incisa / lunghezza configurabile

Perni di espulsione / testa appiattita su un lato / EN 1.3343 Equiv. / superficie incisa / lunghezza configurabile

Per ingrandire l'immagine portare il mouse sull'immagine

Codice componente:

Sono stati trovati. 10 candidati non definiti.
Quantità:

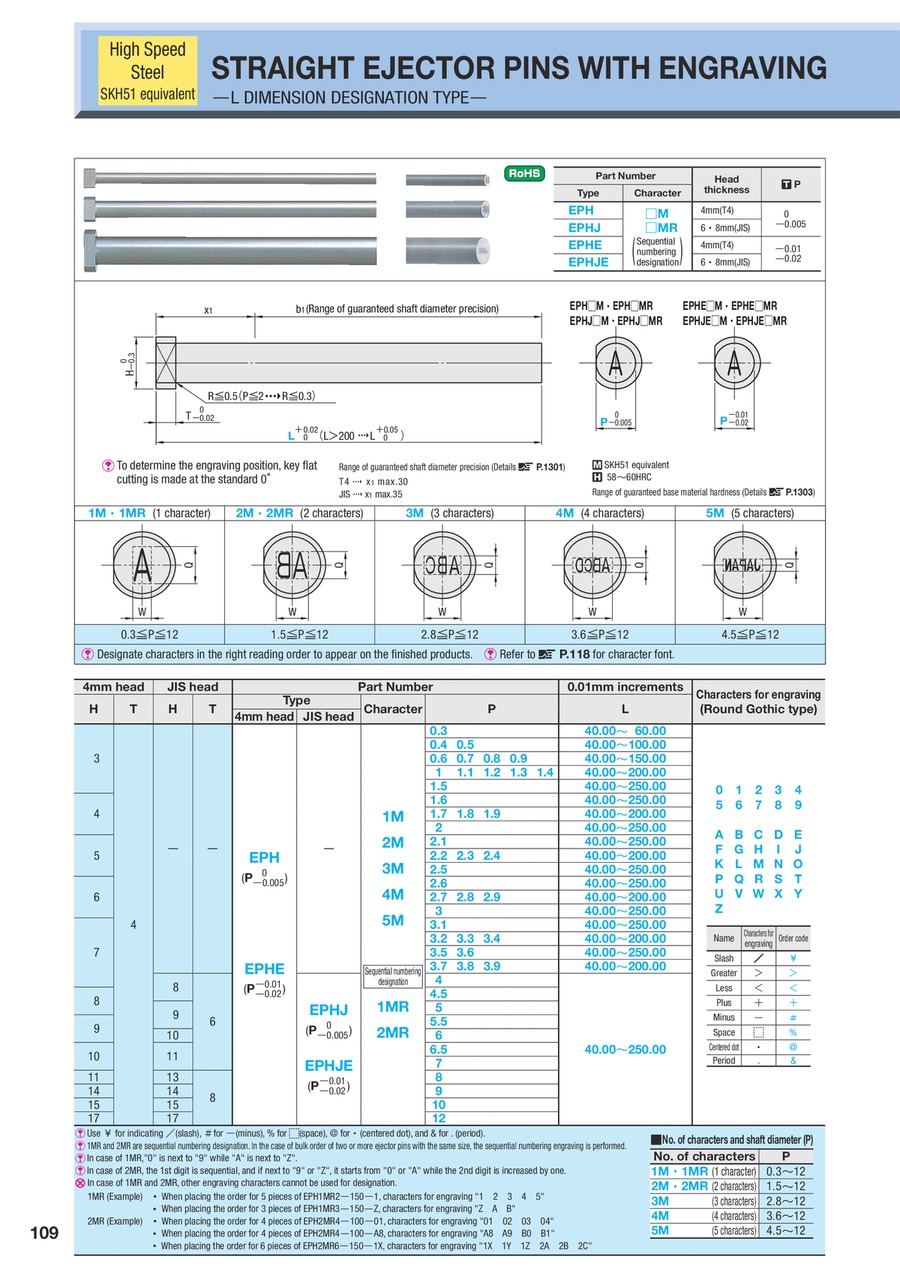

Disegno schematico

Elenco numeri di parte

Numero di articoli
  • 1
    • Codice componente
    EPHJE5M4.5-[40-250/0.01]-*****
    EPHJE5M5-[40-250/0.01]-*****
    EPHJE5M5.5-[40-250/0.01]-*****
    EPHJE5M6-[40-250/0.01]-*****
    EPHJE5M6.5-[40-250/0.01]-*****
    EPHJE5M7-[40-250/0.01]-*****
    EPHJE5M8-[40-250/0.01]-*****
    EPHJE5M9-[40-250/0.01]-*****
    EPHJE5M10-[40-250/0.01]-*****
    EPHJE5M12-[40-250/0.01]-*****

    Shaft diameter tolerance (Reference tolerance)

    L dimension tolerance (Reference tolerance)

    Head thickness

    D/P (Shaft diameter)

    (mm)

    Character engraving type

    Number of engraving characters

    L (L dimension)

    (mm)

    Engraving character designation

    		RoHS?Quantità minima d'ordine
    -0.01/-0.02
    +0.02/0 or +0.05/0
    6mm(JIS)
    4.5
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    6mm(JIS)
    5
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    6mm(JIS)
    5.5
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    6mm(JIS)
    6
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    6mm(JIS)
    6.5
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    6mm(JIS)
    7
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    8mm(JIS)
    8
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    8mm(JIS)
    9
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    8mm(JIS)
    10
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    -0.01/-0.02
    +0.02/0 or +0.05/0
    8mm(JIS)
    12
    Concave character
    5 characters
    40 - 250
    ※Designation by WOS
    10
    1 pezzi
    Prezzo unitario (IVA esclusa)(Prezzo unitario IVA inclusa)
    Giorni spedizione standard
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
    -
    (
    -
    )
    Preventivo
