Valvole di controllo del flusso a una via con attacco rapido, tipo push-lock, ad angolo/universale Serie AS

Fare clic sull'immagine per visualizzarla ingrandita

Pagina precedente

Pagina successiva

Catalogo

Attenzione

For specifications and details, please refer to the catalog.
Product images may be representative images. Refer to the catalog for details.

Codice componente:

Sono stati trovati. 674 candidati non definiti.

Informazioni sul prodotto
Elenco numeri di parte
Ulteriori informazioni
Catalogo

Informazioni sul prodotto

Speed Controller With One-Touch Fitting, Push-Lock Type, Elbow Type / Universal Type, AS Series Specifications

Elbow Type / Universal Type, Push-Lock Type external appearance

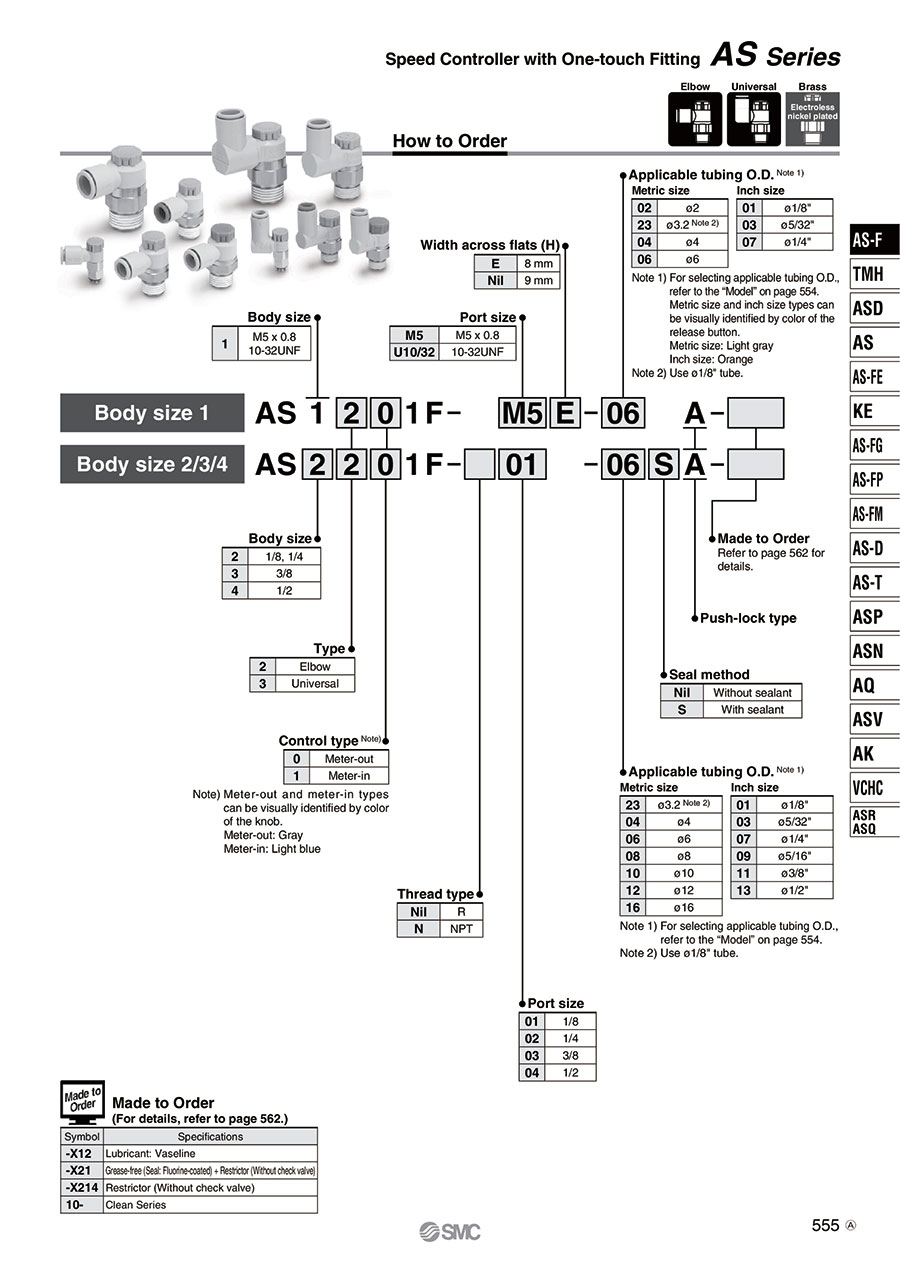

Easy one-push lock with no tools

Conventional product

Push lock type

Model

Model		Port size		Seal method	Applicable tubing outer diameter
Elbow type	Universal type				Metric size								Inch Size
Elbow type	Universal type				2^{Note 2)}	3.2	4	6	8	10	12	16	1/8 "	5/32 "	1/4 "	5/16 "	3/8 "	1/2 "
AS12□1F-M5□	AS13□1F-M5□	M5 × 0.8		Gasket seal	●^{Note 3)}	●	●	●	-	-	-	-	●	●	●	-	-	-
AS12□1F-U10/32□	AS13□1F-U10/32□	10-32UNF		Gasket seal	●^{Note 3)}	●	●	●	-	-	-	-	●	●	●	-	-	-
AS22□1F-□01	AS23□1F-□01	R NPT	1/8	Sealant^{Note 1)}	-	●	●	●	●	●^{Note 3)}	-	-	●	●	●	●	-	-
AS22□1F-□02	AS23□1F-□02		1/4		-	●^{Note 3)}	●	●	●	●	-	-	●^{Note 3)}	●	●	●	●	-
AS32□1F-□02	AS33□1F-□02		1/4		-	-	-	●	●	●	●	-	-	-	●	●	●	-
AS32□1F-□03	AS33□1F-□03		3/8		-	-	-	●	●	●	●	-	-	-	●	●	●	-
AS42□1F-□04	AS43□1F-□04		1/2		-	-	-	-	-	●	●	●^{Note 3)}	-	-	-	-	●	●

Note 1) Type without sealant can also be selected.
Note 2) Applicable tubing material for ø2 (diameter 2 mm) is polyurethane only.
Note 3) Universal type not available.

Specifications

Usable fluids	Air
Proof pressure	1.5 MPa
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60℃ (no freezing)
Applicable tubing material	Nylon, soft nylon, polyurethane^Note), FEP, PFA

Note) Use caution at the max. operating pressure when using soft nylon or polyurethane tubing.

Flow rate and sonic conductance

Model		AS12□1F-M5□ AS13□1F-M5□		AS22□1F-□01^{Note 3)} AS23□1F-□01^{Note 3)}			AS22□1F-□02 AS23□1F-□02				AS32□1F AS33□1F			AS42□1F AS43□1F
Tube outer diameter	Metric size	ø2	ø3.2 ø4 ø6	ø3.2	ø4	ø6 ø8 ø10	ø3.2	ø4	ø6	ø8 ø10	ø6	ø8	ø10 ø12	ø10	ø12 ø16
Tube outer diameter	Inch Size	-	ø1/8 " ø1/4 " ø5/32 "	ø1/8 "	ø5/32 "	ø1/4 " ø5/16	ø1/8 "	ø5/32 "	-	ø1/4 " ø5/16 " ø3/8 "	ø1/4 "	ø5/16 "	ø3/8 "	ø3/8 "	ø1/2 "
C value: Sonic conductance dm³/(s·bar)	Free flow	0.2	0.3	0.4	0.6	0.6	0.7	1.0	1.3	1.5	1.6	1.7	2.5	4.4	4.8
C value: Sonic conductance dm³/(s·bar)	Controlled flow	0.2	0.3	0.4	0.7	0.8	0.6	0.9	1.3		2.1	2.4	3.3	4.4	4.9
b values: Critical pressure ratio	Free flow	0.3	0.4	0.2		0.3	0.3		0.4		0.4		0.3	0.3
b values: Critical pressure ratio	Controlled flow	0.2		0.2		0.3	0.3				0.3			0.3

Note 1) 10-32UNF has the same specification as M5.
Note 2) C and b values are for controlled flow with the needle fully open and free flow with the needle fully closed.
Note 3) The same specifications also apply to the AS-FG Series (stainless steel specification).

Needle Valve: Flow Rate Characteristics

AS1201F-M5□/AS1211F-M5□/AS1301F-M5□/AS1311F-M5□

Note) -U10/32 has the same specification as M5.

AS2201F-01/AS2211F-01/AS2301F-01/AS2311F-01

AS2201F-02／AS2211F-02／AS2301F-02／AS2311F-02

AS3201F／AS3211F／AS3301F／AS3311F

AS4201F／AS4211F／AS4301F／AS4311F

Note) The numbers above the flow rate characteristics curves in the charts show the applicable tubing outside diameter as defined by the product number.
